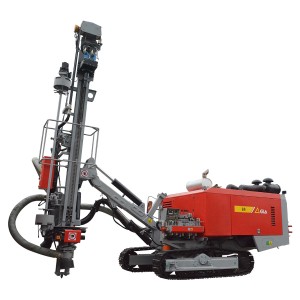

B6A Fully hydraulic open hole drill
B6A Fully hydraulic open hole drill
Recommended aperture range: 90-138mm GIA B6A Adhering to the leading technology of GIA and the mature submersible hole drilling method, set the submersible hole drilling machine and the mobile air compressor in one, the structure Compact, flexible, shift and transfer convenient. The rig is equipped with two-stage dry dust removal and automatic rod change System, to achieve the single operation requirements, and equipped with air conditioning cab, operation, as the environment is more comfortable, the safety is greatly improved, to meet the higher environmental safety standards. The equipment is mainly used in ore, limestone mining, Road engineering construction and other open-air engineering
|
Drilling range |
|
|
Drilling diameter |
90~138mm |
|
Drilling depth |
21m |
|
Drill rod specification |
76X3m |
|
Drilling rod capacity |
6+1 |
|
Engine |
|
|
Brand |
Yu Chai China Standard III |
|
Item no |
6LTAA9.3-C260 |
|
Power |
194KW |
|
Slewing head |
|
|
Slewing speed |
0~120rpm |
|
Slewing torque |
2300Nm |
|
Propeller |
|
|
Propulsion stroke |
5700mm |
|
Compensation length |
1000mm |
|
Propulsion mode |
Oil cylinder+wire rope |
|
Propulsion beam material |
Aviation aluminium |
|
Maximum propulsion |
12kN |
|
Maximum drawing force |
18kN |
|
Traveling system |
|
|
Electrical voltage |
24V |
|
Traveling speed |
1.6~3.2km/h |
|
Climbing ability |
20° |
|
Chassis swing angle |
±10° |
|
Drilling arm |
|
|
Drilling lifting range |
down 28°/up 45° |
|
Left and right swing angle of drilling arm |
Left 25°/right 25° |
|
Left and right swing angle of bracket |
Left 10°/right 91° |
|
Propeller pitching range |
10° |
|
Size & Weight |
|
|
Weight |
12000kg |
|
Size |
8400X2400X3300mm |
