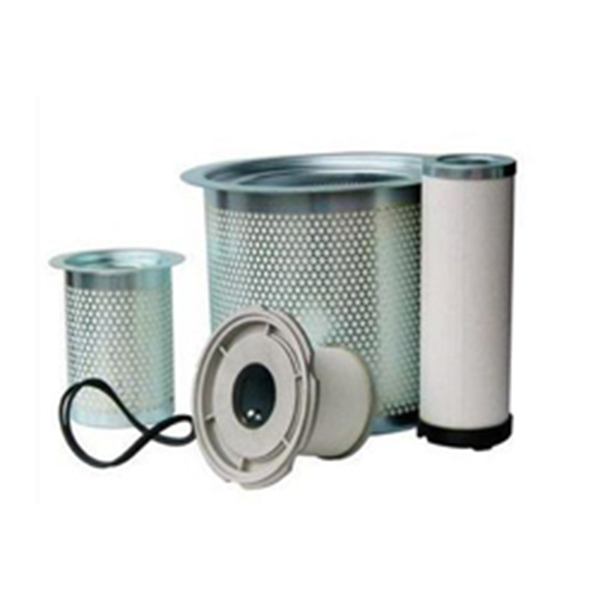

Hitachi Oil And Gas Separation Filter
Hitachi Oil And Gas Separation Filter
Air compressor oil and gas filter its role is to separate the oil from the compressed air, resulting in oil-free compressed air. The advantages and disadvantages of the oil and gas separation filter directly affect the efficiency of the compressor, fuel consumption and compressed air quality. High-quality oil and gas separation filter should have a complete separation of oil and gas, the initial resistance is small, long service life and so on. Oil and gas separation filter can be efficient separation of compressed air in the oil, to ensure the quality of clean air discharge.
Performance parameters
After separation Gas oil content: ≤3PPM W / W
Initial pressure difference: ≤0.02MPa
Service life:> 4000h
| Original element number | Filter diameter(mm) | Filter height(mm) | identification of product | |
| 15HP | 21114040 | 150 | 140 | 32 211 15 140 |
| 30HP | 36014040 | 200 | 250 | 32 211 15 252 |
| 50HP | 36214040 | 200 | 300 | 32 211 15 303 |
| 30HP | 52303020 | 108 | 254 | 32 211 15 254 |
| 50HP | 52303020 | 108 | 320 | 32 211 10 320 |
| 100HP | 29614040 | 302 | 304 | 32 211 30 304 |
