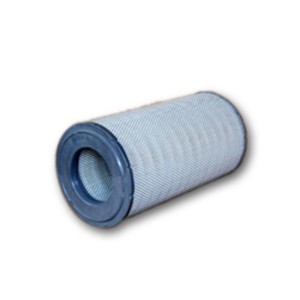

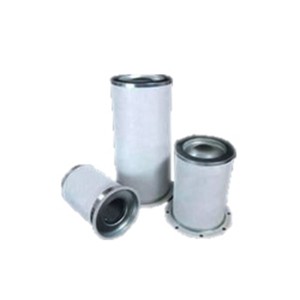

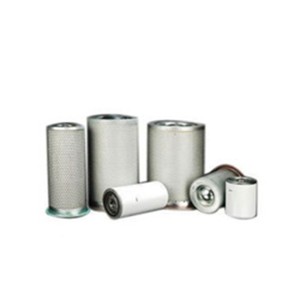

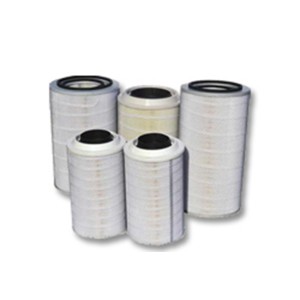

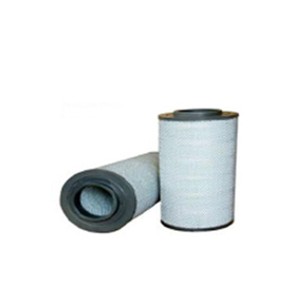

Kobelco oil and gas separation filter
Kobelco oil and gas separation filter
The function of the air compressor oil filter is to separate the oil from the compressed air and get the compressed air without oil. The quality of the oil and gas separation filter directly affects the efficiency, fuel consumption and compressed air quality of the compressor. High quality oil and gas separation filter should have the characteristics of thorough oil and gas separation, small initial resistance and long service life. The oil and gas separation filter can efficiently separate the oil in the compressed air to ensure the quality of clean air discharged
Performance parameters
gas and oil content after separation: 3 PPMW / W initial pressure difference: 0.02MPa
service life:> 4000h
| model | Original element number | Filter diameter(mm) | Filter height(mm) | Product Model |
| 50HP | P-CE03-537 | 220 | 215 | 32 211 15 215 |
| 50HP | P-CE03-538 | 220 | 317 | 32 211 15 317 |
| 50HP | P-CE03-572 | 108 | 322 | 32 211 15 322 |
| 30HP | P-CE03-578 | 135 | 299 | 32 211 15 299 |
| 50HP | P-CE03-577 | 135 | 400 | 32 211 10 401 |
| 75HP | P-CE03-517 | 292 | 300 | 32 211 30 300 |
| 100hp | P-CE03-517#03 | 292 | 450 | 32 211 30 450 |
