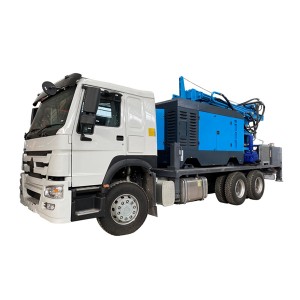

Truck Mounted Water Well Drilling Rig
Application area
KMT600 Multi-functional truck mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
USE RANGE
Depth : 20m-1000m
Diameter: 3inch-20inch
Specifications
Model Number:KMT600
Dimension(L*W*H):12500*2500*4300 mm
Weight:25000KG
Product name:Truck mounted water well drilling rig
Drilling Depth:Max.600m
Drilling Diameter:140mm-400mm
Power:153KW
The engine brand :Cummins engine
Swing torque:9800 N.m
Rotate Torque:8500-11000N.m
Drill tower load:50T
Pull down force:15T
Lifting force:30T
Liftng force cf hoist winch:3T
Drill Pipe Diameter:φ102mm φ108mm φ114mm
Drill Pipe Length:4000/4500mm
Mud pump:1100L/M
Effective height cf power head:6.5m
Cylinder strock cf power head:3.6m
Chassis model:4*2/4*4/6*4/6*6/8*4
Using air pressure:1.7-3.5 MPA
Air consumption:17-42 m3/min
Rotation Speed:93-186rpm
