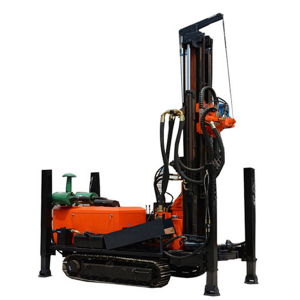

Water Well Drilling Rig KYL200
Scope of application
suitable for photo voltaic engineering, solar power base, piling, engineering blasting drilling, with a machine dual-use, torque, piling fast, flexible and efficient and so on.
Advantages of KYL200 well drilling vehicle
1, engine 65Kw turbocharged engine;
2, walking device: walking motor with reducer, long life;
3, hydraulic oil pump; parallel transmission design (patent) oil pump separate, power to provide adequate allocation of reasonable, unique design of hydraulic systems, simple maintenance costs;
4, power head device, transmission, casting, dual motor to provide power, torque, durable, small maintenance costs;
5, drill chassis; professional excavator chassis, durable, high bearing weight, chain plate width, small damage to the hard surface;
6, lifting force; patent design compound big arm, big arm small size, long stroke, double oil cylinder lifting, lifting tonnage;
7, each rig to enhance the arm are installed in the limit, to protect the safety of the cylinder, to protect the safety of work;
8, each hydraulic oil pipe is covered with a protective jacket, so that the tubing life is longer.
|
KYL200 water well drilling rig |
|||
| The weight(T) | 4.7 | Drill pipe diameter(mm) | Φ76 Φ89 |
| The hole diameter(mm) | 140-254 | Drill pipe length(m) | 1.5m 2.0m 3.0m |
| Drilling depth(m) | 200 | Rig lifting force (T) | 13 |
| One-time advance length(m) | 3.3 | Rapid rise speed(m/min) | 20 |
| Walking speed(km/h) | 20-40 | Fast feeding speed(m/min) | 40 |
| Climbing angles(Max.) | 30 | Swing speed(rpm) | 45-65 |
| Equipped capacitor (kw) | 65 | Hoisting force of winch(T) | -- |
| Using air pressure(MPA) | 1.7-2.5 | Swing torque (N.m) | 3400-4700 |
| Air consumption(m3/min) | 17-31 | Dimension(mm) | 4350*1600*2450 |
| The penetration
efficiency(m/h) |
10-35 | High leg stroke(m) | 1.4 |
| The engine brand | Quanchai engine | ||
